Canvas

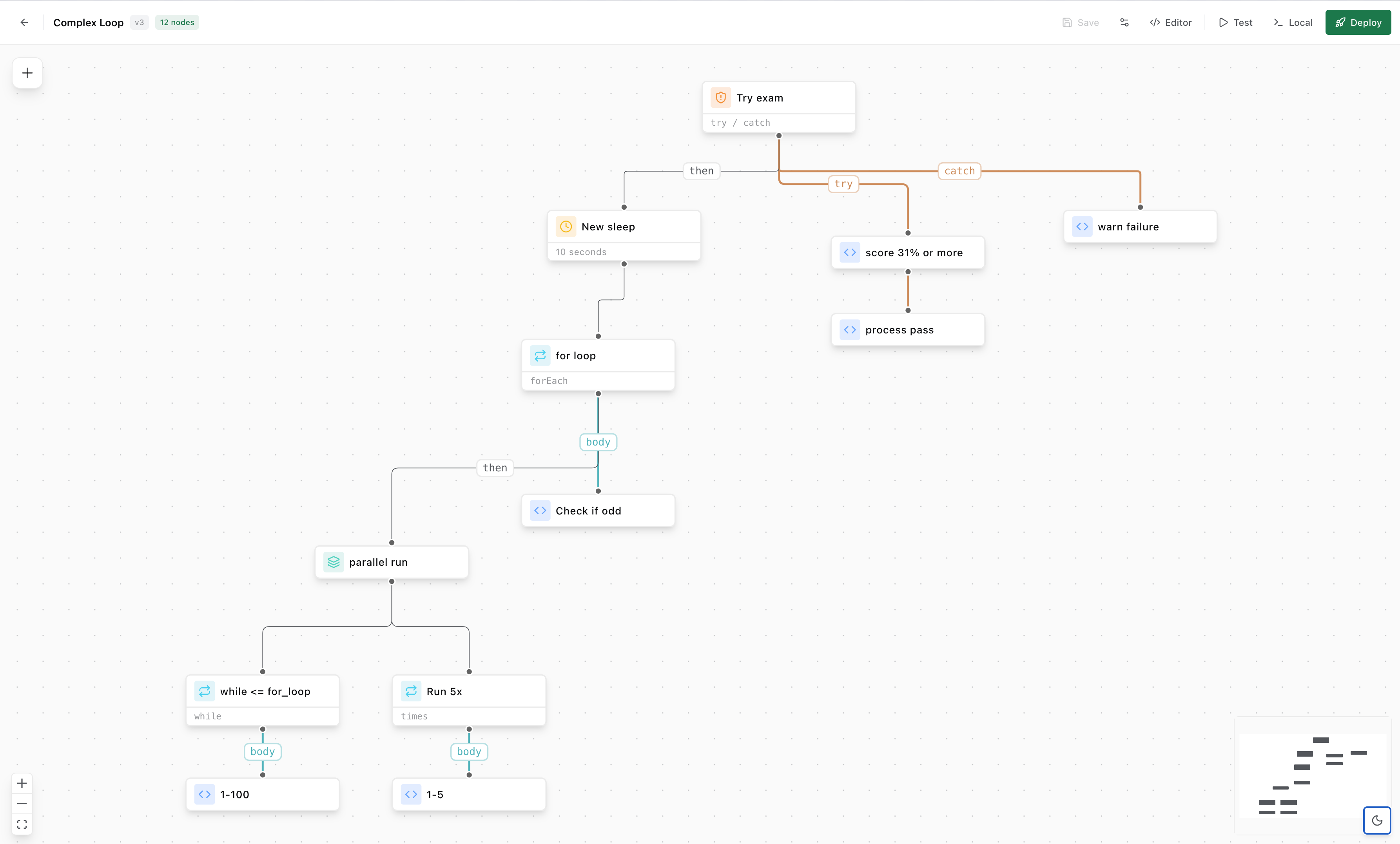

The canvas is the visual workflow editor in AwaitStep. It is built on XYFlow (formerly React Flow) and provides a spatial, node-graph interface for building workflows.

Adding Nodes

Open the node picker by clicking the + Add Node button in the toolbar, or by right-clicking an empty area of the canvas. Nodes are grouped by category (Control Flow, HTTP, Scheduling, etc.).

Drag a node from the picker onto the canvas to place it. You can also click a node in the picker to add it at the center of the viewport.

Connecting Nodes

Hover over a node to reveal its connection handles — a source handle on the bottom and a target handle on the top. Drag from a source handle to a target handle on another node to create an edge.

Branch nodes have multiple source handles, one per condition path. Each outgoing edge from a branch node can be labeled with the condition expression it represents.

TIP

Double-click an edge label to edit the branch condition directly on the canvas.

The Config Panel

Selecting a node opens the config panel in the right sidebar. The config panel renders form controls automatically from the node's configSchema.

Each field type renders a different control:

Type	Control
string	Single-line text input
number	Numeric input with min/max validation
boolean	Toggle switch
select	Dropdown with predefined options
multiselect	Multi-select dropdown
secret	Masked input that binds to an environment variable
code	Monaco editor in TypeScript mode
json	Monaco editor in JSON mode
expression	Text input with {{nodeId.property}} autocomplete
textarea	Multi-line text area

Expression Autocomplete

Fields of type expression provide autocomplete for the outputs of upstream nodes. Type {{ to trigger the suggestion popup. Suggestions are drawn from the outputSchema of each upstream node.

{{fetch_user.email}}
{{charge_result.amount}}

Only nodes that are topologically upstream of the current node appear in autocomplete. The editor shows an error indicator if an expression references a downstream node or a node that does not exist.

Secrets

Secret fields do not store values directly. Instead, they bind to a named environment variable that you configure in the Environment panel. The variable name is defined in the node's configSchema via envVarName. At deploy time, secrets are uploaded to Cloudflare via wrangler secret put.

WARNING

Secret values are never stored in the IR or in the AwaitStep database. They exist only in your Cloudflare Worker's encrypted secret store.

The Editor Panel

The bottom panel has four tabs:

Code

A read-only Monaco editor showing the TypeScript code that will be compiled from the current workflow IR. Updates in real time as you edit the canvas. Useful for understanding what gets deployed.

IR

A read-only JSON view of the current WorkflowIR. Shows the raw IR that is saved to the database and passed to the codegen pipeline.

Triggers

Configure how the workflow is started:

• Manual — only started via the AwaitStep UI or API
• HTTP — triggered by an incoming HTTP request to a generated endpoint

Dependencies

If your workflow uses custom nodes that require npm packages, they are listed here. Dependencies are installed in the deploy directory before wrangler deploy is called.

Validation

The canvas continuously validates the workflow as you edit. Validation errors are shown as red badges on affected nodes and as a list in the bottom bar.

Common validation errors:

• Missing required config — a required field on a node has no value.
• Disconnected node — a node has no incoming edges and is not the entry node.
• Forward expression reference — a config field references the output of a downstream node.
• Invalid expression — an expression references a node ID that does not exist in the workflow.
• Invalid IR — the IR fails schema validation (e.g. missing entryNodeId).

INFO

Validation runs locally in the browser using the same validateIR function from @awaitstep/ir that the API uses before deploy. If the canvas shows no errors, the deploy will not fail due to validation.

Keyboard Shortcuts

Shortcut	Action
Backspace / Delete	Delete selected nodes or edges
Escape	Deselect all
Shift + drag	Select multiple nodes (lasso)
Click + drag (canvas)	Pan the canvas
Scroll wheel	Zoom in/out
